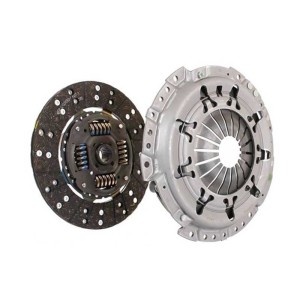

Volvo S70 2.4 125KW B5244S 97-00 Clutch Kit

Data sheet

Clutch Disc Diameter Ø [mm]

228

Clutch Centering Diameter Ø [mm]

22

Clutch Disc Spline Count

20

Clutch Disc Reference

323 0498 10

Pressure Plate Reference

124 0403 10

Release Bearing or Concentric Slave Bearing Reference

510 0010 10 - Concentric Slave Cylinder Sold Separately

Remarks

Ø230mm clutch from Ch. No. 157 8139 & 257 9063 onwards

Cross Reference 1

R318MK

Warranty Exclusions 1

Mishandling during transport and storage

Warranty Exclusions 2

Failure to re-machine (skim) single-mass flywheels to manufacturer standards. In the event of a claim, we may request the job card and/or the receipt for the re-machining (skimming).

Warranty Exclusions 3

Failure to replace a single-mass or dual flywheels where this is specifically recommended or required.

Warranty Exclusions 4

Incorrect Fitment

Warranty Exclusions 5

Failure to identify and repair other vehicle faults which may affect correct operation

Warranty Exclusions 6

Failure to use the correct kit as supplied

Warranty Exclusions 7

Incorrect Driving Practice

Warranty Exclusions 8

Fitment to incorrect or unauthorized vehicle applications

Warranty Exclusions 9

Any fitment to a vehicle which has been converted in any way to enhance performance, including but not limited to Turbo Upgrades or chipping

Warranty Exclusions 10

Any motorsport or competitive use

Warranty Exclusions 11

Fitment by an unqualified technician or mechanic. Technician accreditation maybe requested in the event of a claim.
