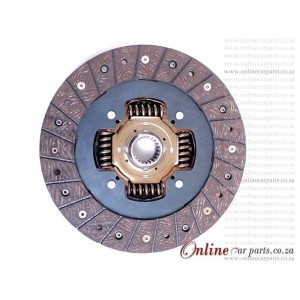

Toyota HI-ACE Hiace 1.8 Minibus P Van 2Y 89-05 Clutch Kit

Data sheet

Clutch Disc Diameter Ø [mm]

225

Clutch Centering Diameter Ø [mm]

28.8

Clutch Disc Spline Count

21

Clutch Disc Reference

322 0233 70

Pressure Plate Reference

1 023 V13 05

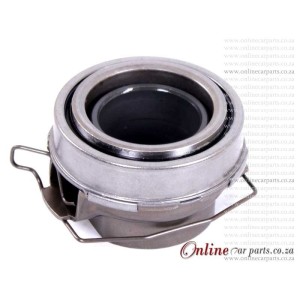

Release Bearing or Concentric Slave Bearing Reference

500 0539 60

Remarks

with integral Release Bearing and collar assembly

Cross Reference 1

R111MK

Warranty Exclusions 1

Mishandling during transport and storage

Warranty Exclusions 2

Failure to re-machine (skim) single-mass flywheels to manufacturer standards. In the event of a claim, we may request the job card and/or the receipt for the re-machining (skimming).

Warranty Exclusions 3

Failure to replace a single-mass or dual flywheels where this is specifically recommended or required.

Warranty Exclusions 4

Incorrect Fitment

Warranty Exclusions 5

Failure to identify and repair other vehicle faults which may affect correct operation

Warranty Exclusions 6

Failure to use the correct kit as supplied

Warranty Exclusions 7

Incorrect Driving Practice

Warranty Exclusions 8

Fitment to incorrect or unauthorized vehicle applications

Warranty Exclusions 9

Any fitment to a vehicle which has been converted in any way to enhance performance, including but not limited to Turbo Upgrades or chipping

Warranty Exclusions 10

Any motorsport or competitive use

Warranty Exclusions 11

Fitment by an unqualified technician or mechanic. Technician accreditation maybe requested in the event of a claim.
